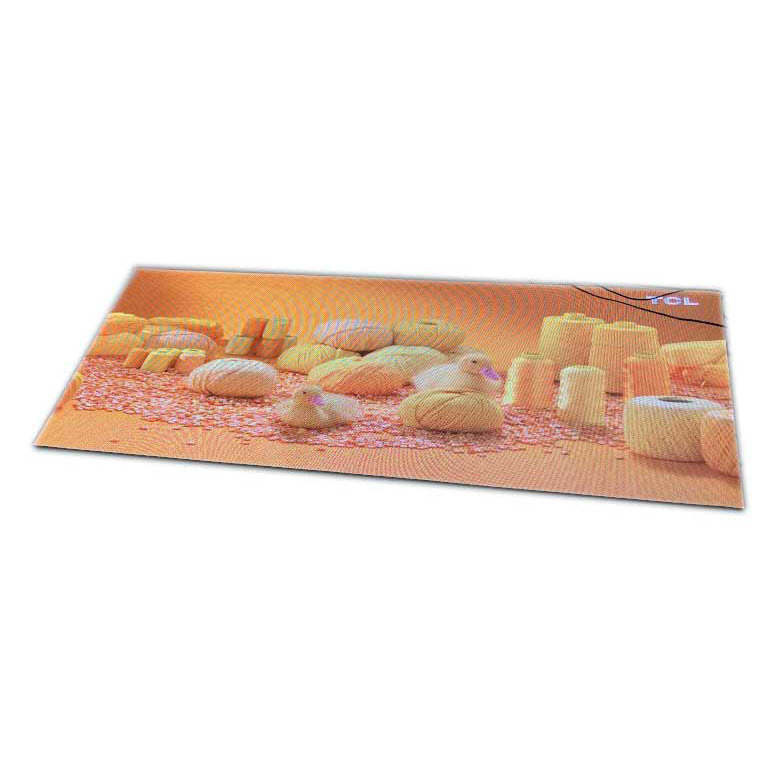

商品写真
仕様
W1m
| Module Specifications | Pixel Pitch | 2.604 |
| Module Size(mm) | W : 500 H : 62.5 | |
| Module Resolution(dots) | W : 192 H : 24 | |
| Module Pixles(dots) | 4609 | |
| Cabinet Specification | One Roll Size(mm) | W : 1000 H : 2000 |
| One Roll Resolution | W : 384 H : 768 | |
| Module Quanity(pcs) | W : 2 H : 32 | |
| Module Quanity Total (pcs) | 64 | |
| Pixel Density(dots/m2) | 147475 | |
| Screen Parameters | Brightness | >1500cd/㎡ |
| Driving Method | 1/24scan | |
| View Angle | Horizontal 140° Vertical 120° | |
| Min. Viewing Distance | ≥2.6meter | |
| Gray scale | 8192×8192×8192 | |
| Colors | 549 Billion | |
| Refresh rate | ≥7680Hz | |
| Input Voltage | AC220V/60Hz or AC110V/60Hz | |
| MTBF | >10,000 hours | |
| Life span | ≥100,000 hours | |
| IP rating(Front/Rear) | IP65/IP41 | |
| Temperature-operating | ﹣10℃～50℃ | |
| Humidity-operating | 10%～90% |
W0.5
| Module Specifications | Pixel Pitch | 2.604 |
| Module Size(mm) | W : 500 H : 62.5 | |
| Module Resolution(dots) | W : 192 H : 24 | |
| Module Pixles(dots) | 4609 | |
| Cabinet Specification | One Roll Size(mm) | W : 500 H : 2000 |
| One Roll Resolution | W : 192 H : 768 | |
| Module Quanity(pcs) | W : 1 H : 32 | |
| Module Quanity Total (pcs) | 32 | |
| Pixel Density(dots/m2) | 147475 | |
| Screen Parameters | Brightness | >1500cd/㎡ |
| Driving Method | 1/24scan | |
| View Angle | Horizontal 140° Vertical 120° | |
| Min. Viewing Distance | ≥2.6meter | |
| Gray scale | 8192×8192×8192 | |
| Colors | 549 Billion | |
| Refresh rate | ≥7680Hz | |
| Input Voltage | AC220V/60Hz or AC110V/60Hz | |
| MTBF | >10,000 hours | |
| Life span | ≥100,000 hours | |
| IP rating(Front/Rear) | IP65/IP41 | |
| Temperature-operating | ﹣10℃～50℃ | |
| Humidity-operating | 10%～90% |
